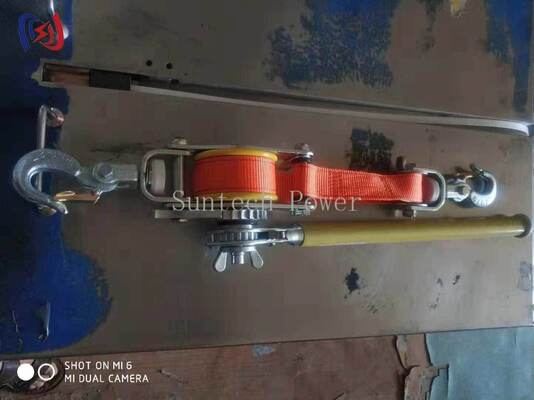

High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines

1 adet
MOQ
negotiable
fiyat
High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
İsim: Yalıtımlı sıkıştırıcı
Ürün No.: 14105-14107
Modeli: SJJY-1
Anma Kaldırma / Çekme: 10/5
Dokuma kalınlığı x uzunluğu: 5x2300mm
minimum uzunluk: 410-480mm
Maksimum uzunluk: 1210-1400mm
Ağırlık: 3.3-4.5kg
Vurgulamak:

High Voltage Insulated Tightener

,

Safe Live Line Tightener

,

Fiberglass Insulating Boom Tightener
Temel bilgiler
Menşe yeri: Ningbo
Marka adı: Suntech
Sertifika: ISO
Model numarası: SJJY-1
Ödeme & teslimat koşulları
Ambalaj bilgileri: kontrplak durumda
Teslim süresi: 3-7 gün
Ödeme koşulları: L/C,T/T
Yetenek temini: 1000 PC/Ay
Ürün Açıklaması
High Voltage Insulated Tightener for Safe Live Line Work on Overhead Distribution and Transmission Lines
Product Overview
The Insulated Tightener is a critical piece of specialized equipment designed to enable safe and efficient work on or near energized electrical conductors. It serves as a tensioning and pulling tool that allows line crews to tighten, slacken, or reposition conductors while maintaining a safe insulating barrier between the worker and the live line.
Technical Specifications
Item No. Model Rated Lifting/Pulling Webbing thickness*length(mm) Min length(mm) Max length(mm) Weight(kg)
14105 SJJY-1 10/5 5*2300 410 1210 3.3
14106 SJJY-1.5 15/7.5 6*2300 480 1400 4.2
14107 SJJY-2 20/10 6*2300 480 1400 4.5
High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines 0
Key Features and Benefits
  • Essential for Live Line Safety
    Provides a safe working method for tasks on energized lines with high dielectric strength insulating materials that prevent current from passing to the ground through the tool and worker.
  • High Strength and Dielectric Insulating Boom
    Constructed with fiberglass reinforced plastic for excellent mechanical strength and high dielectric properties to withstand electrical stress.
  • Efficient Mechanical Advantage System
    Incorporates pulley block or ratchet mechanisms allowing single workers to apply significant conductor tension with low input force.
  • Secure and Non-Damaging Conductor Grip
    Engineered to hold conductors firmly without causing damage to surface, strands, or protective coatings.
  • Compatibility with Hot Stick Tools
    Features standardized connection points for attachment to insulated hot sticks, enabling safe distance operation.
  • Durability for Rugged Field Use
    Built to withstand harsh outdoor conditions with resistance to impact, UV degradation, moisture, and temperature extremes.
  • Compliance with International Safety Standards
    Rigorously tested and certified to meet international standards for dielectric tests, mechanical load tests, and voltage performance.
  • Enables Work Without Service Interruption
    Allows maintenance, repairs, and new connections without taking customers offline, improving system reliability.
  • Versatility in Utility Applications
    Essential for pulling new conductors, replacing insulators, adjusting sag, removing jumper lines, and storm restoration work.
  • Investment in Safety and Efficiency
    Pays for itself by enabling safe work practices that prevent accidents and allow work without costly outages.
By choosing a professionally rated and certified Insulated Tightener, you are making a direct investment in the safety of your workforce and the reliability of the power network you maintain.
